.58 rim fire

[carlsr]

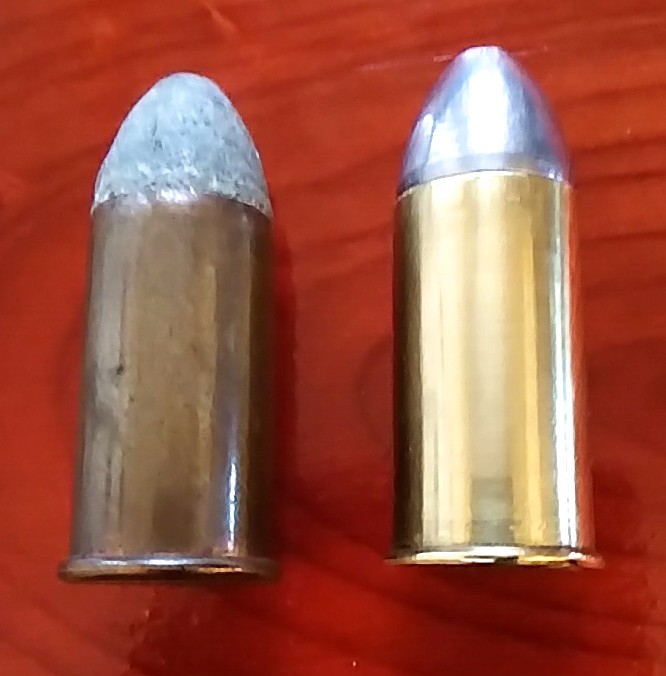

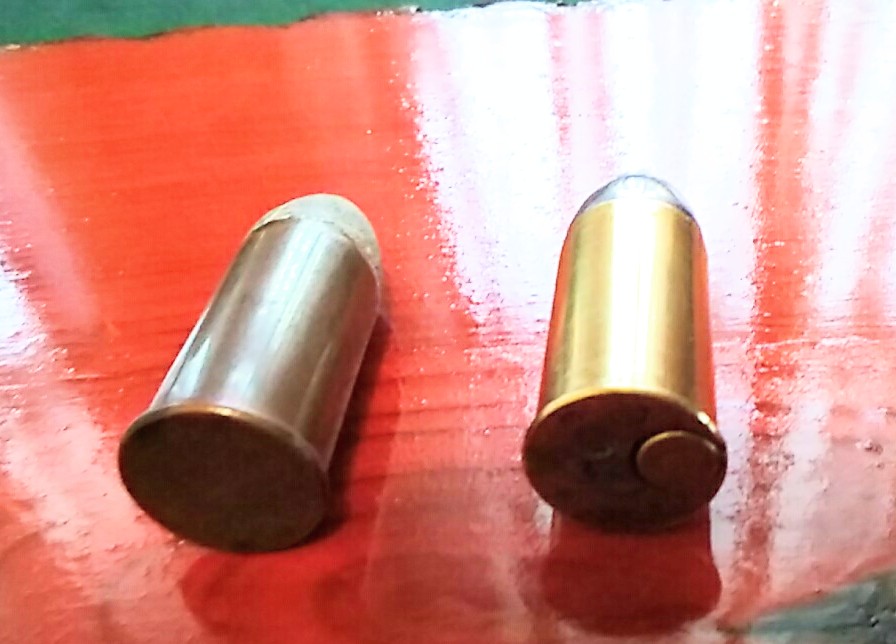

Here is an original.58 rim fire round and a new .58 rim fire round. I make these to shoot my 1865 first Allin conversion. Takes a while to make one case which uses a 22 acorn blank.

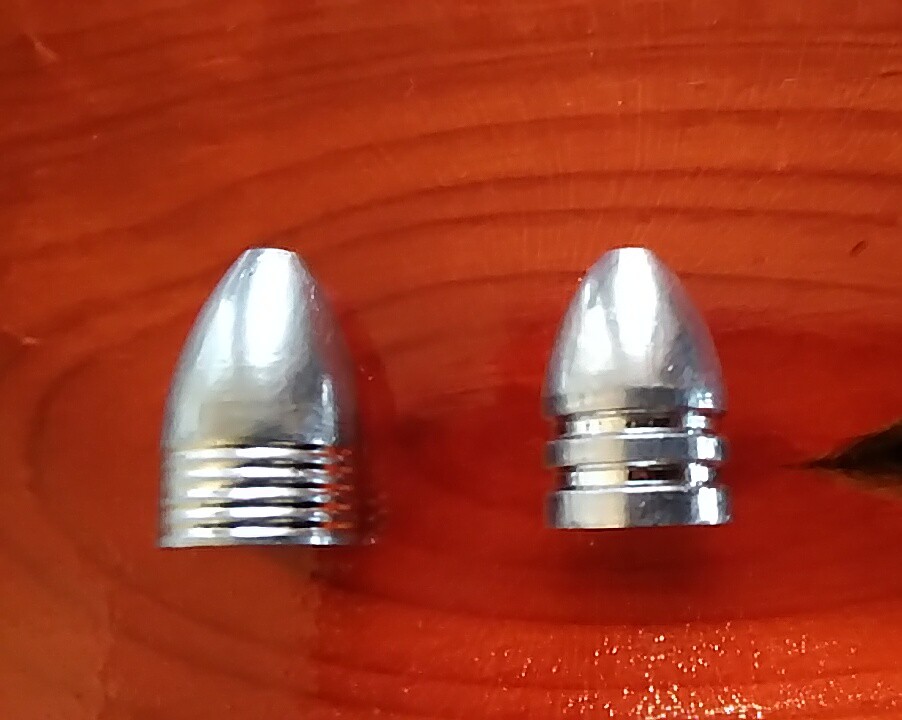

The bullets are made from a double mold that I had made at Accurate molds. Left is from an original diagram which I added some length to reach 500 gr. The one on the right is from their catalogue. I have not tried these bullets yet but they should work well.

[Fred Gaarde]

Wow!

[Jim]

Are the cases made on a lathe?

[carlsr]

No Jim, they are made from Magtech 28 gauge shot shells. It's a time consuming process.

[Dick Hosmer]

Unfortunately the .58 case is so wide that the blank must be placed off-center, requiring the round to be placed carefully. I just saw a similar case used in a .32 caliber rolling block, but the diameter was such that the blank could be inserted into the bored-put primer pocket of the parent case and still receive the firing pin blow. On the .58s, I wonder if anyone has explored placing the blank closer to the center - MAYBE allowing use of the same cartridge in both CF and RF arms?

[carlsr]

Dick, the Blank must be placed close to the edge of the case. On the M65 the firing pin hits the case at 12:00 High. I’ll have to take another picture of a case that’s already been fired. Even without the spent blank you will notice that the firing pin hits the edge.

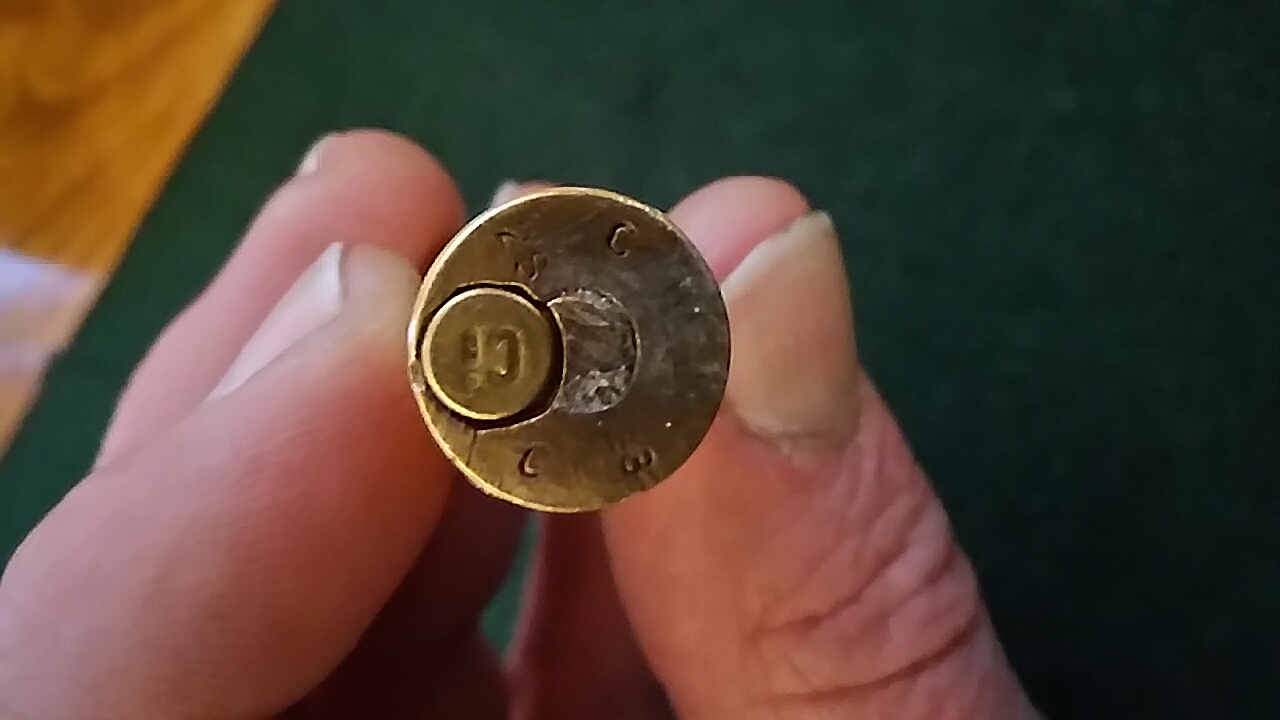

Ok, here's the picture. The small indent at 12:00 is from the firing pin. When fired the indent only extends about another 1/16" further down.
